PRODUCTS
Test Panels

Variable Voltage AC / DC Test Panel



Different auxiliary voltages are used in different types of production machines in industrial plants. These voltages are from 12 V AC to 240 V AC and from 12 V DC to 120 V DC. The Variable Voltage AC / DC Test Panel will respond to your every need.



If the devices used in industrial plants cause problems, time is important about testing, deciding and purchasing of these devices. Delays cause production losses.



In the test panel, the energy analyzer can be connected to the computer to monitor the changes in the high voltage network or low voltage network that you are connected to, and it is used with monitoring the starting currents, performance and other electrical parameters of the electric motors to be maintained. There are two separate units with control panel and workbench. If requested, they can be used together or individually.



Advantages :

1 -  Constantly monitors the voltages and fluctuations at the plant's transformers outputs and if desired, the level of manual traction changes. The technicians may inform the official authorities at extremely high and very low levels.

2 -  It reads the harmonics in the bar where it is connected, it provides important benefits in researching and taking precautions in order to reduce losses in the factory.

3 -  Reads and stores the maximum values ​​of all current, voltage and power.

4 -  Tracks the frequency.

5 -  Tests performances of the engines.

6 -  Star / triangle starting system for engines (up to 30 kW)

7 -  Direct starting system for motors (up to 5.5 kW)

8 -  Serial circuit (Maintenance time of faults is shortened.)

9 -  Additional test equipment can be added to the test panel upon request.

10 -  The performance of the engines can be measured by installing two different power drives.

11 -  The optional drawer cupboard under the cabinet is for the regular maintenance of the technicians' materials and hand tools.



Test Panel Dimensions :

Height: 200 cm.

Width: 140 cm.

Depth: 80 + 30 cm.

Weight: 300 kg.

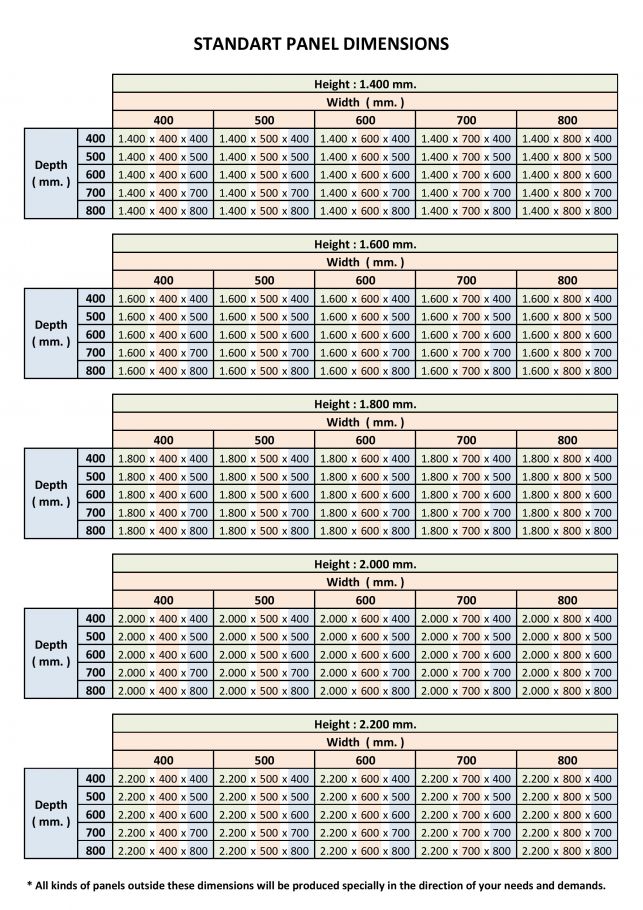

TECHNICAL TABLE
Teknik Tablo
